Vega IoT WT16Ch 16 Channel Temperature Data Logger WiFi Based,

Send Inquiry

Request To Call Back

Vega IoT WT16Ch 16 Channel Temperature Data Logger WiFi Based,

Name: Vega IoT WT16Ch 16 Channel Temperature Data Logger WiFi Based,
Brand: VEGA CALIBRATIONS LLP.
Price: 57819 INR
Availability: InStock

Price 57819 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Vega IoT WT16Ch 16 Channel Temperature Data Logger WiFi Based, Specification

Temperature Range
-40C to +80C

Alarm
Buzzer & Visual LED Alarm

Power Supply
Micro USB DC 5V, 1A

Data Capacity
Up to 70,000 records

Theory
Industrial Wireless Sensing & Data Logging

Type
WiFi Based 16 Channel Temperature Data Logger

Display Type
LCD Digital Display

Memory
Internal Memory - 2MB

Accuracy
0.5C

Size
205mm x 135mm x 40mm

Resolution
0.1C

Battery
Rechargeable 3.7V Li-ion Battery (Optional)

GPS
Not Included

Net Weight
Approx. 580g

Standby Time
Up to 72 hours (Battery operation)

Interface
WiFi, RS485, USB

Measuring Range
-40C to +80C

Includes
Main Unit, Power Adapter, User Manual

Logging Interval
Configurable from 1 second onwards

Software Compatibility
Compatible with Vega IoT Cloud Platform

Enclosure Rating
IP54 Protection

Humidity Range
0% RH - 90% RH (non-condensing)

Sensor Type
Supports Multiple Sensor Probes (e.g., PT100, Thermocouple)

Operating Temperature
-10°C to +50°C

Data Transmission
WiFi Data Upload, Optional Remote Monitoring

Mounting
Wall Mountable

Compliance
CE, RoHS Certified

Number of Channels
16 Channels (T1 to T16)

About Vega IoT WT16Ch 16 Channel Temperature Data Logger WiFi Based,

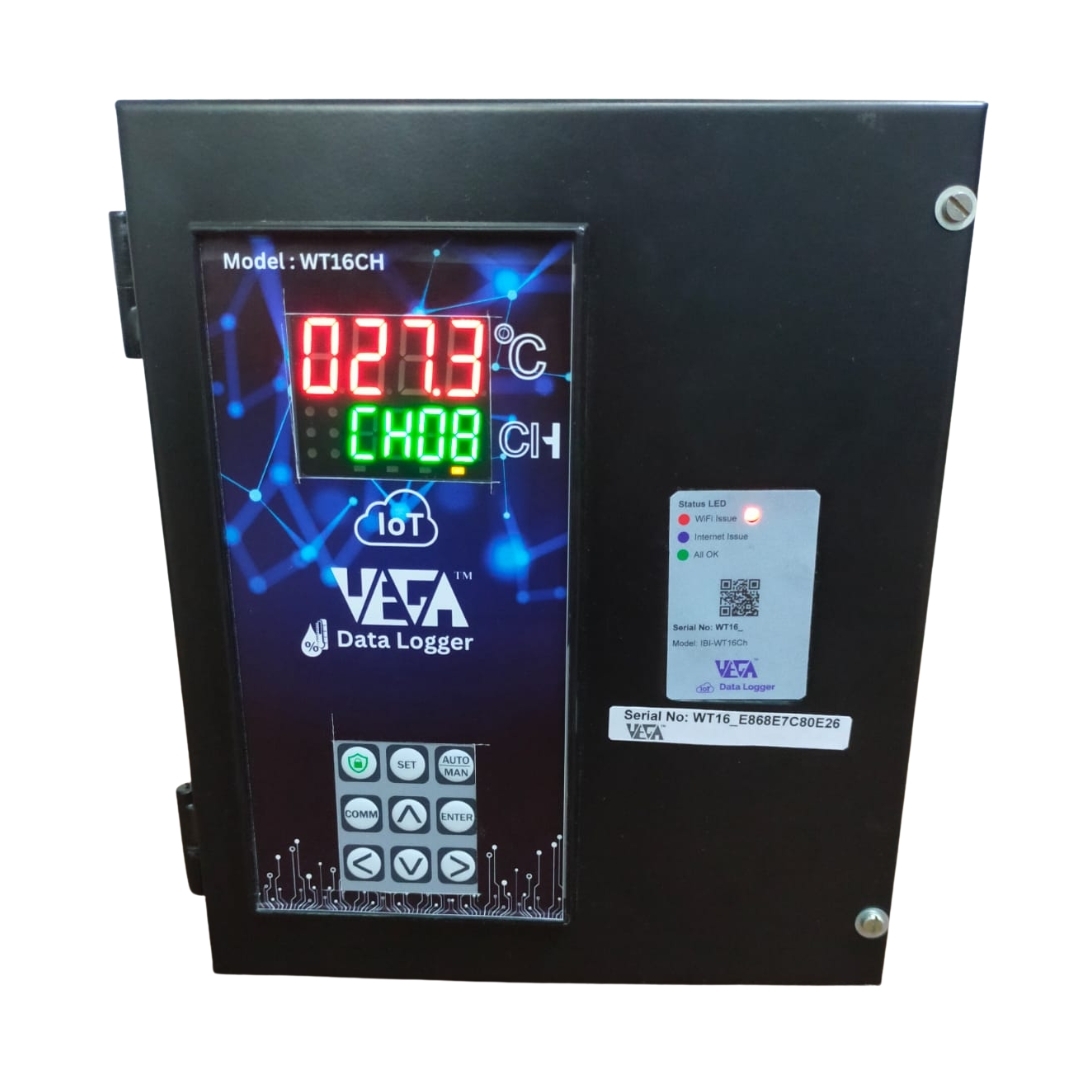

VEGA WT16Ch 16 Channel Temperature Data Logger WiFi Based

Hardware Features

Process Value : Upper : 0.56" 4 Digit Red LED 7 Segment Display Channel No : Lower: 0.4"3 Digit Red LED 7 Segment Dislpay 4 Controlling Key For Configuration And Operation SET, INC, DEC,ENT WI-FI 802.11 b/g/n 2.4 GHz Internal Storage Of 150 Days At Sampling Frequency of 15 mins Software Features Pharma, Chemical & Laboratory Equipment Monitoring application Machine Condition Monitoring Different Views ( Dashboard / Map / List ) , Analytics, Device Management, User Management, Alert Management. Custom Reports PDF, CSV, Excel MKT Value, Audit Trail, Alarm Log, Trend Graphs Alerts, Push Notification & SMS (Optional) eb & Mobile Apps ( IOS & Android).

Robust Multi-Channel Data Logging

Monitor up to 16 temperature points simultaneously with the WT16Ch's multi-channel functionality. Each channel can connect different sensor types (PT100, thermocouple), allowing versatile deployment in industrial and commercial setups. Data is captured at user-defined intervals and safely stored for analysis.

Seamless Wireless Connectivity

Reliable WiFi transmission enables rapid data upload to the secure Vega IoT Cloud Platform, facilitating remote access and centralized temperature monitoring from any location. The logger also supports RS485 and USB interfaces, accommodating varied integration needs across industries.

Durable and Adaptable Design

Designed for challenging spaces, the WT16Ch features an IP54-rated wall-mountable enclosure, an LCD digital display, and alarms for timely notifications. Its wide operating temperature and humidity range ensure durability and precision in diverse ambient conditions.

FAQ's of Vega IoT WT16Ch 16 Channel Temperature Data Logger WiFi Based,:

Q: How does the Vega IoT WT16Ch transmit temperature data for remote monitoring?

A: The WT16Ch leverages WiFi connectivity to automatically upload temperature readings from all 16 channels to the Vega IoT Cloud Platform, enabling real-time remote monitoring and data analysis from any web-enabled device.

Q: What types of temperature sensors can be used with this data logger?

A: This logger is compatible with multiple sensor probes, including PT100 and thermocouple sensors, offering flexibility to suit various measurement requirements across industries.

Q: When should I configure the logging interval, and how does it affect data collection?

A: You can set the logging interval from 1 second onwards, tailoring it to your monitoring needs. Shorter intervals provide more frequent readings, which are ideal for rapid temperature fluctuations, while longer intervals help conserve memory and extend battery life.

Q: Where is the ideal installation spot for the WT16Ch data logger?

A: The device is wall mountable and should be installed in areas requiring multi-point temperature monitoring within its operating temperature range (-10C to +50C) and humidity range (0%-90% RH, non-condensing).

Q: What is the process for accessing logged temperature data?

A: Temperature data can be viewed directly on the LCD display or remotely accessed via the Vega IoT Cloud Platform. For manual retrieval, users can also connect via USB or RS485 interfaces to export records as needed.

Q: What are the benefits of using Vega IoT WT16Ch for industrial temperature monitoring?

A: It provides precise, multi-channel continuous monitoring, early warning alarms, automatic cloud uploads, and extensive data capacity, reducing the risk of equipment failure and ensuring temperature-sensitive operations remain optimal.
