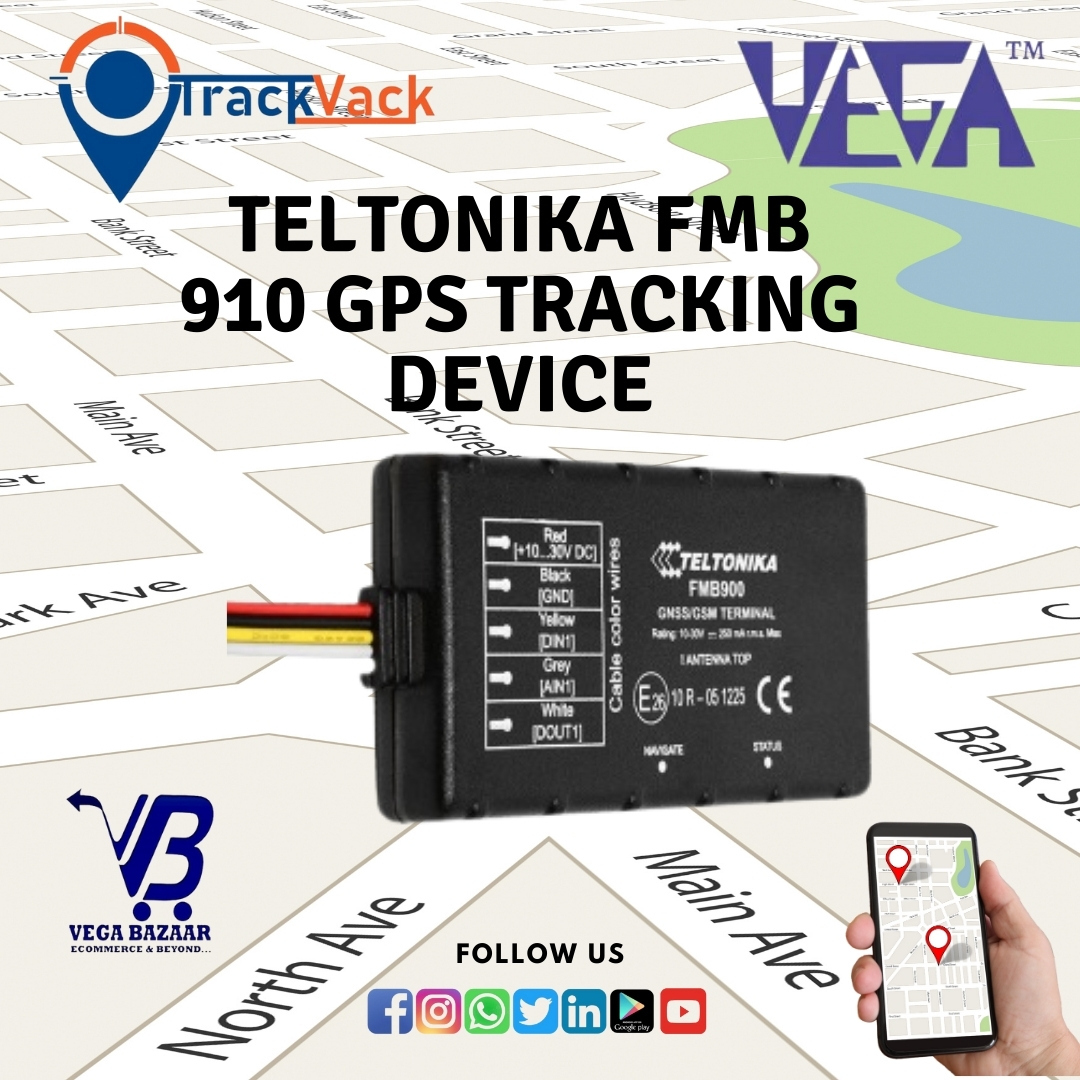

Teltonika FMB 910 GPS Tracking Device

Price 4130 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Teltonika FMB 910 GPS Tracking Device Specification

Features
IP54 certified, Built-in movement and crash detection, Remote engine immobilizer, Compact and lightweight design, LED indication for GSM and GPS status, Firmware and configuration updates via USB and FOTA

Weight
72 g

Type
GPS Tracker

Usage
Automotive

Function
Real-Time Vehicle Tracking

Dimensions
79 x 43 x 12 mm

Network
GSM/GPRS

GPS Accuracy
<3 m

GPS Sensitivity
-165 dBm

Battery Backup
Up to 6 hours (with Li-ion 170 mAh backup battery)

Display
Analog

Frequency
Quad-band 850/900/1800/1900 MHz

Teltonika FMB 910 GPS Tracking Device Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Mumbai

Payment Terms
Cash in Advance (CID)

Delivery Time
4 Days

Packaging Details
Box

Main Domestic Market
All India

About Teltonika FMB 910 GPS Tracking Device

Teltonika FMB 910 GPS Tracking Device

Physical Parameters Ingress Protection Code : IP54

Dimensions : 79 x 43 x 21 mm

Weight : 0.069 kg

Operating Temperature : -40C to 85C

Technology GSM/GPRS/GNSS/BLUETOOTH

GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Position accuracy < 2.5 CEP

Velocity accuracy < 0.1m/s (within +/- 15%% error)

Time to first fix (TTFF) < 1 s (Hot start), < 25 s (Warm start), < 35 s (Cold start)

Cellular 2G bands Quad-band 850 / 900 / 1800 / 1900 MHz

Power Input voltage range 6-30 V DC with Overvoltage protection, Internal Back-up battery 170 mAh Li-Ion battery (0.63 Wh)

Physical specification Dimensions 79 x 43 x 27.5 mm (L x W x H), 69 g

Temperature (Without battery) -40C to +85C (Operating), -40C to +85C (Storage)

Operating humidity 5%% to 95%% non-condensing

Ingress Protection Rating IP54

Interface 1x Digital Input, 1x Digital Output, 1x Analog Input, GNSS antenna (Internal High Gain), Cellular antenna (Internal High Gain), 1x 2.0 Micro-USB, 1x status LED light, 1x Micro-SIM, 128MB internal flash memory

Sensors : Accelerometer

Software Scenarios Green Driving, Over Speeding detection, Towing detection, Auto Geofence, Trip

Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

SMS Events, DOUT control, Debug

GPRS commands Configuration, DOUT control, Debug

Time Synchronization GNSS, NITZ, NTP

Fuel monitoring LLS (Analog)

Ignition detection Digital Input 1, Accelerometer, External Power Voltage

Teltonika FMB910 is a low-cost version of the FMB920 tracker. The main differences are the overall size of the device, different GNSS antenna design, and some components being bigger in size, thus the change in dimensions. The device has all internal antennas, that ensure easy installation with no need to wire the antennas. Like other Teltonika trackers, FMB910 is assembled by robots, which eliminates human error and ensures high quality of the device. The tracker has a digital input to monitor ignition or to connect an alarm button. Vehicle remote immobilizing may be achieved using a digital output. Bluetooth connectivity expands peripherals connectivity even more. Teltonika FMB910 can be used in a variety of applications like basic track and trace or recovery of stolen vehicles. It can be installed in light vehicles, motorbikes, and even trucks.

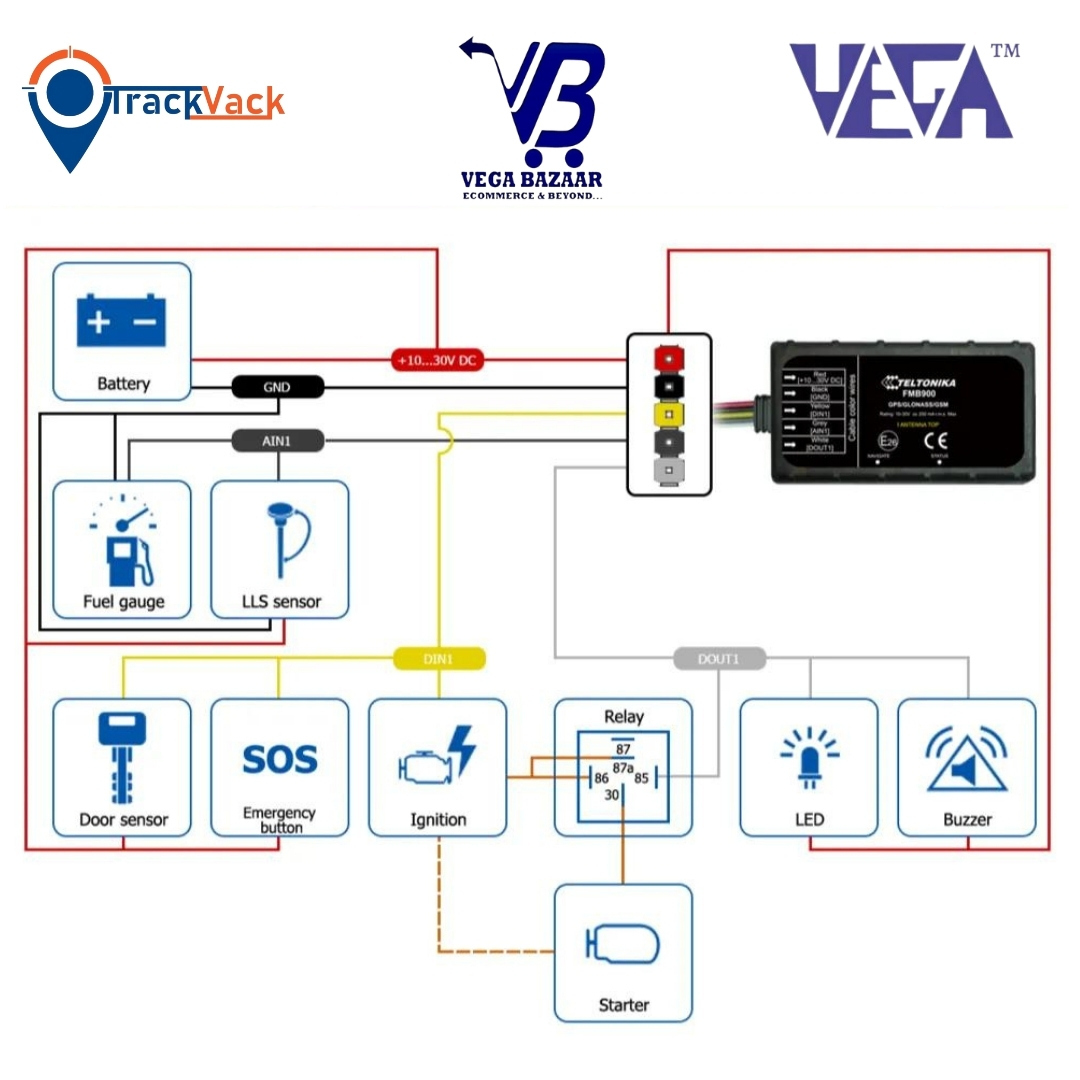

Teltonika FMB910 is a reliable track & trace tracker for motorbikes, light and heavy vehicles in applications like delivery transport, rental cars, recovery of stolen cars, public safety services, and much more. Tracker is equipped with internal High Gain GNSS and GSM antennas and integrated backup battery. Input/output extend device usage scenarios: Buy FMB910 atVegabazaaarDigital input can be used for ignition, door or alarm button status monitoring, Analog input allows to monitor external devices/sensors, including fuel sensors, Digital output enables vehicle remote immobilizing.FMB910is EASY tracker with simplified management to fulfill the demands of track & trace.

Versatile Power and Reliable Performance

Operating on a wide voltage range (1030 V DC), the Teltonika FMB 910 is equipped with overvoltage protection to safeguard connected vehicle systems. It functions seamlessly across diverse automotive applications, and its robust ABS plastic enclosure ensures durability even in challenging environments. Whether used by manufacturers, service providers, suppliers, or traders, its stable performance makes it a dependable tracking solution for the Indian market.

Effortless Installation and User-Friendly Setup

The FMB 910 is engineered for easy installation using a cable harness. Simply wire it to the vehicle battery and ignition system, and the device will reliably transmit real-time location data. LED indicators provide instant feedback on GSM, GPS, and power status, while sleep modes (GPS Sleep, Deep Sleep, Online Deep Sleep) help optimize energy consumption during inactive periods.

Comprehensive Tracking and Security Features

This GPS tracker offers advanced security functionalities including built-in movement and crash detection as well as a remote engine immobilizer. With less than 3-meter GPS accuracy and quad-band GSM/GPRS connectivity, users receive precise location and event alerts. Firmware and configuration updates can be performed via USB or over-the-air (FOTA), ensuring your tracker always operates up-to-date.

FAQs of Teltonika FMB 910 GPS Tracking Device:

Q: How is the Teltonika FMB 910 GPS tracker powered and is overvoltage protection included?

A: The device operates on a 1030 V DC input voltage, making it compatible with most automotive electrical systems. It also features integrated overvoltage protection to ensure safe and stable performance when connected to vehicle batteries.

Q: What is the process for installing the FMB 910 on a vehicle?

A: Installation is straightforward: the compact tracker is wired directly to the vehicles battery and ignition system using the included cable harness. The devices lightweight and small form factor, along with LED indicators, further simplify the process.

Q: When is remote engine immobilization possible with this device?

A: Remote engine immobilization can be initiated anytime the vehicle is in a compatible condition. This feature enhances security, allowing authorized personnel to prevent vehicle use through a remote command, even when not physically present.

Q: Where can the Teltonika FMB 910 be installed within a vehicle?

A: Thanks to its compact dimensions (79 x 43 x 12 mm) and lightweight design (72 g), the FMB 910 can be discreetly installed in various hidden or protected areas of a vehicle, often beneath the dashboard or inside the glove compartment.

Q: What data transmission methods does the FMB 910 use?

A: The device supports data transfer via TCP, UDP, and SMS protocols over GSM/GPRS networks in quad-band frequencies, ensuring reliable real-time location tracking and event reporting in diverse network environments.

Q: How does the backup battery function and what benefit does it offer?

A: The built-in 170 mAh Li-ion battery can supply power for up to 6 hours when the main vehicle power supply is disrupted or disconnected, ensuring continuous tracking and data transmission during outages or tampering attempts.

Q: What are the main benefits of using Teltonika FMB 910 for automotive tracking?

A: Key advantages include precise (<3 m) real-time tracking, built-in crash and movement detection, ease of installation, remote firmware/configuration updates, and enhanced security features like engine immobilization and IP54 certification for dust and water resistance.
